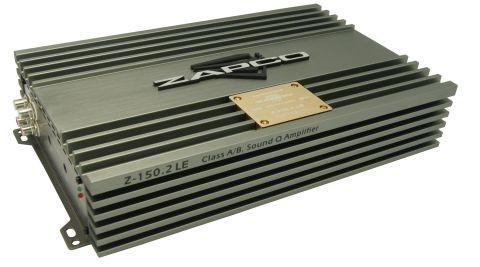

Features and Functions

• 2-Channel, Sound Quality, Competition Amplifier
• Ultra high speed, Regulated power supply
• Nichikon Supply Capacitors
• Elna Silmic ii Signal caps
•  Analog DEVICES Op275 Op-Amps
• Philips Poly-film Caps
• Ceramic Bypass caps
• Sanken Output Devices
• 2X High-Speed High-efficiency Switching Power Supply
• Shortened Signal Path for Improved Signal Purity
• All preamp controls removed except gain at each channel
• Panel mount RCA connectors

Specifications

• Power @ 4Ω: 2 x 150 watts
• Power @ 2Ω: 2 x 250 watts
• Power @ 4Ω Bridged: 1 x 500 watts
• THD @ Rated Power < 0.05%
• Signal to Noise Ratio > 90dB
• Channel separation > 60dB
• Frequency Response 10Hz to 30,000Hz ±1dB
• Input Sensitivity .25v to 8v
• Dimensions in mm: 190(W) x 62(H) x 301(L) Overall: 190(W) x 62(H) x 328(L)

Designed to be the finest sounding Car Audio Amps EVER.

​​​​​​​
