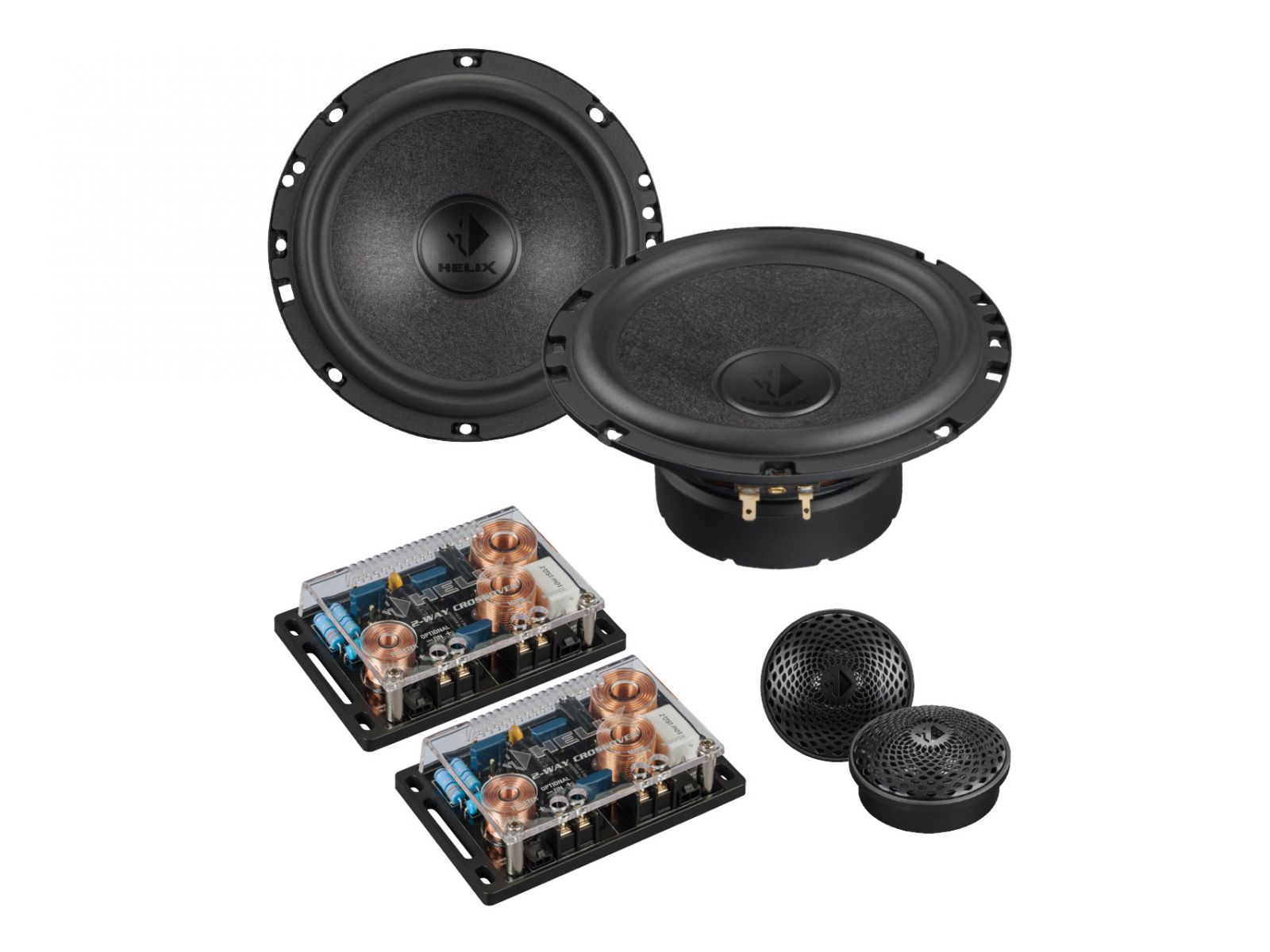

Highest sound quality

With the S-series loudspeakers each ride becomes a special sound experience. The sophisticated design and the use of the latest technologies guarantee excellent sound characteristics with rich bass, accurate mids and crystal-clear highs.

Classy design

In addition to the excellent sound characteristics, the S 62C.2 also impresses with its timeless elegant design. Especially the transparent "Flex-Crossover" with its high-quality components and the noble aluminum housing of the tweeter make this system a real feast for the eyes.

Easy integration

The sophisticated design with low installation depths, a removable housing of the tweeter and the very compact and innovative "Flex-Crossover" offer much more freedom in terms of connectivity and installation – even in particularly limited space. Additionally, it provides an easy cabling, thanks to Plug & Play connections between the individual components.

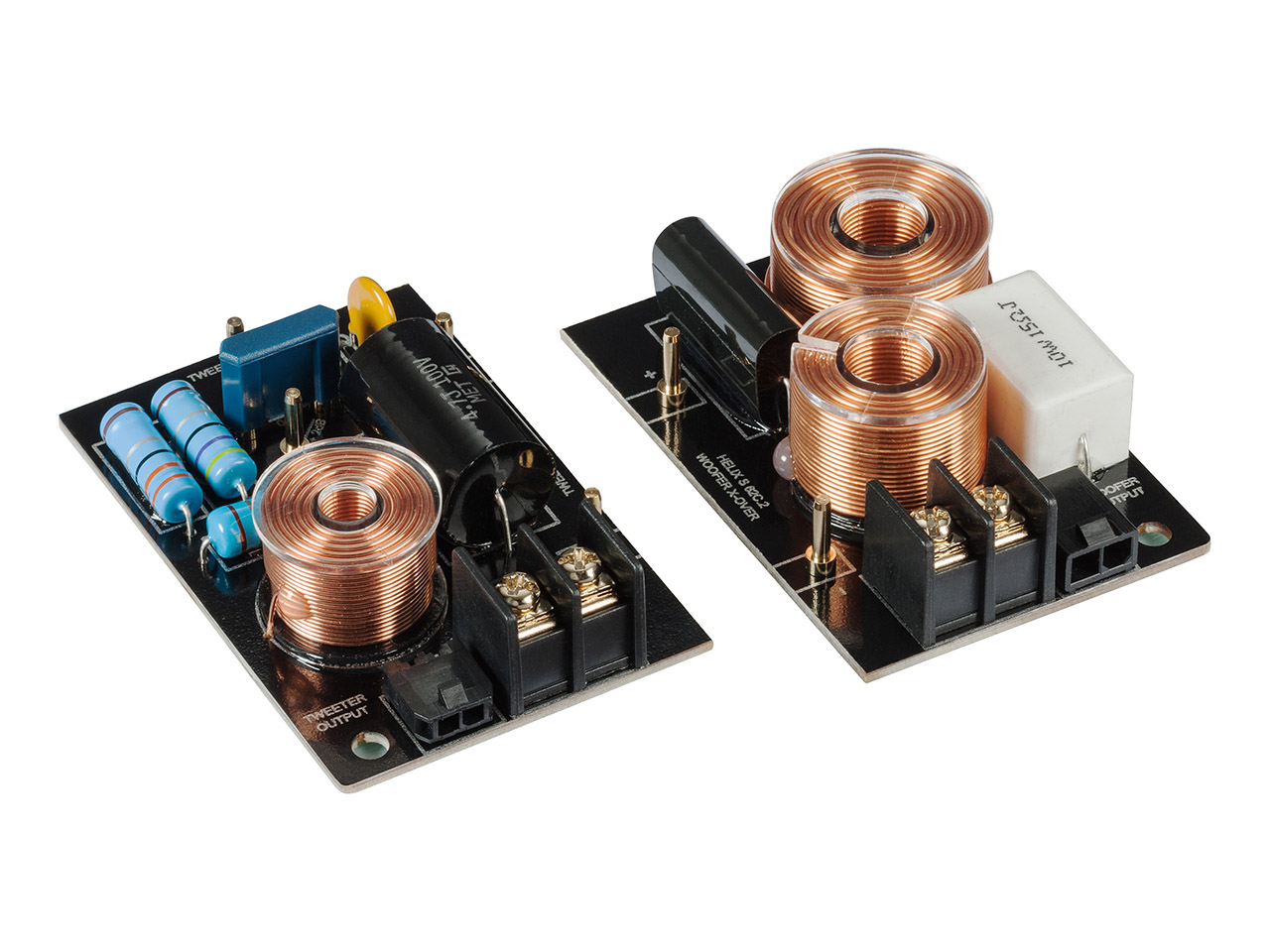

Maximum flexibility – “Flex-Crossover”

The new "Flex-Crossover" is not only a visual highlight, it also involves a couple of technical refinements. To drastically reduce the dimensions, the circuit board can also be installed without its housing in a supplied foam and it can be split into two parts for separate installation (e.g. tweeter in A-pillar, woofer in the door). In addition to a 3-stage tweeter level adjustment and Plug & Play cable connections, the crossover is also equipped with screw terminals for even more flexibility when connecting with your own speaker cables.

Features

6.5” / 165 mm woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping

1” / 25 mm silk dome tweeter in a noble aluminum housing for balanced, natural sound reproduction and lowest compression effects

Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling

“Flex-Crossover“ with 6/12 dB slope, bandstop filter and three-stage tweeter level adjustment – separable and therefore well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer

Crossovers solely equipped with high grade components e.g. low-distortion air-core coils and minimum-loss Audiotec-foil capacitors for tweeter crossover

Specifications

Power RMS / max.: 100 / 200 Watts

Frequency response: 45 Hz - 25,000 Hz

Impedance: 4 Ω

Efficiency 1 W / 1 m: 90 dB

Cone material:
TW: Coated silk dome
M:
W: Basalt-fiber-paper compund

Crossover: 6/12 dB with bandstop filter, tweeter protection and tweeter level adjustment

Outer diameter:
TW: 51 mm / 2.0"
M: -
W: 165 mm / 6.50"

Installation diameter:
TW: 45 mm / 1.77"
M: -
W: 143 mm / 5.63"

Installation depth:
TW: 14 mm / 0.55"
M: -
W: 65 mm / 2.56"

Dimensions crossover: 112 x 77.5 x 27 mm / 4.41 x 3.05 x 1.06"
