S165 85 (Passive or Active)

SIGNATURE: 2-Way Component System

SIGNATURE TWEETER: TS 25 HR - HIGH RESOLUTION TWEETER

• 25 mm (1’’) textile dome diaphragm

• Frequency response 1,5 KHz – 40 KHz

• Sensitivity 90,1 dB – Impedance 4 Ω High efficiency magnet (N38H neodymium) – Precision machined aluminum front plate – Low resonance rear chamber – Large roll surround for wide dispersion.

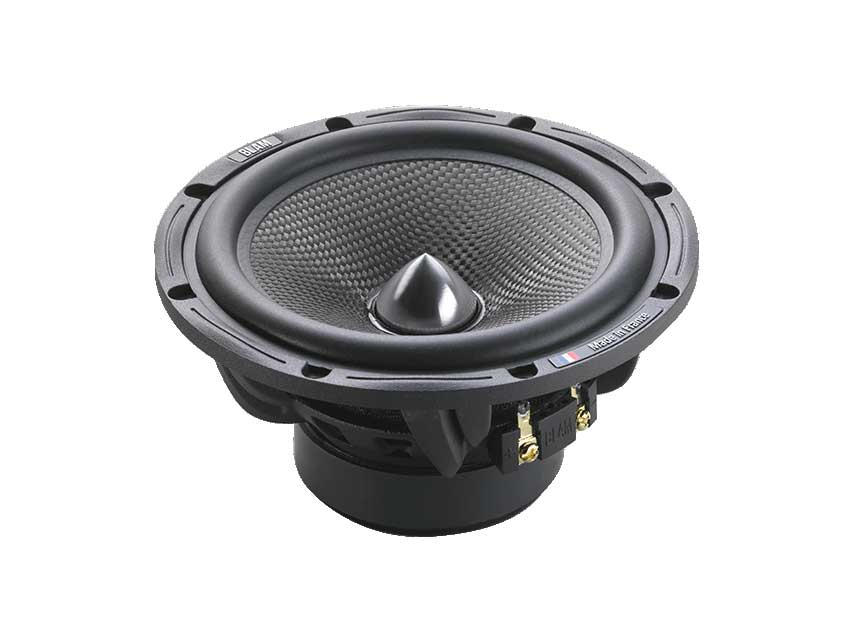

SIGNATURE WOOFER: WS 6.85 - HIGH FIDELITY WOOFER

• Woofer 6,5” (165 mm)

• Max power 200 W / Nom. power 100 W

• Frequency response 45 Hz – 40 kHz

• Sensitivity 91,7 dB – Impedance 3 Ω

• Die cast aluminum basket – Ultra rigid carbon fiber cone – NBR surround – Long life « conex » spider – 34 mm voice coil, fiber glass former – 85 x 20 mm Oversized magnetic motor – Gold-plated terminal.

Crossovers: BFX 02 AUDIOPHILE GRADE CROSSOVER

• 12/12 dB/octave 2 ways crossover

• Adjustable tweeter level +3 dB 0 dB or -3 dB

• Crossover point: 3 kHz High quality metallized polyester caps – Low DCR air coils.


MADE IN FRANCE
