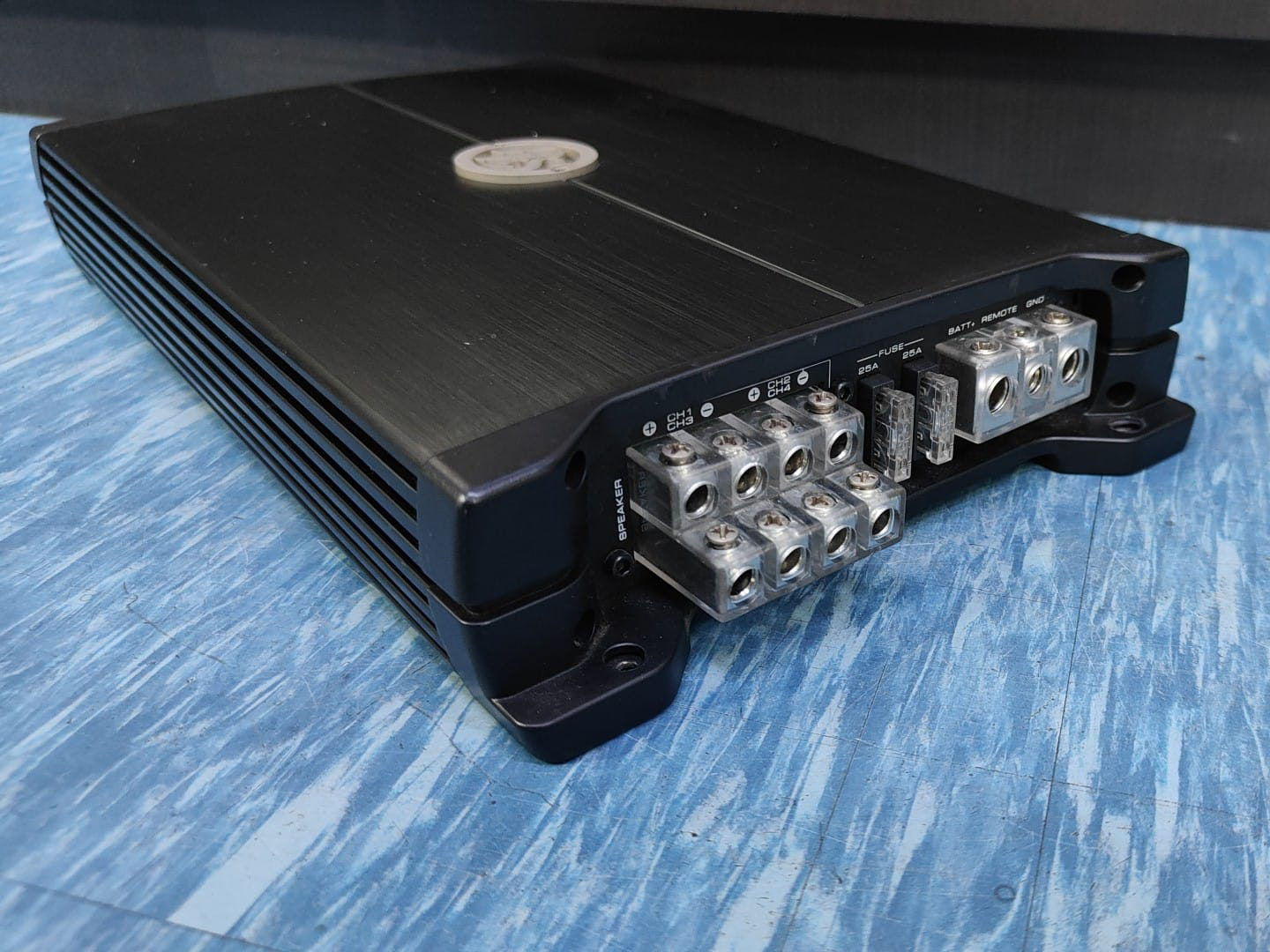

The XM40 is a powerful amplifier with a nominal output of 4 x 100 Watts peak power. With a mono bridge connection, it puts out all of 2 x 170 Watts. Built-in low and high pass filters as well as BASS EQ funtion in three steps used to fine tune the bass sound in your sound system.

Specifications:

• NUMBER OF CHANNELS: 4
• AMPLIFIER CLASS: AB
• PEAK POWER: 4 X 100 WATT
• OUTPUT POWER IN 2 OHM: 4 X 80 WATT
• OUTPUT POWER IN 4 OHM: 4 X 56 WATT @ 1% THD, 4 X 50 WATT @ 0,05% THD
• MONO BRIDGE MODE 4 OHM: 2 X 170 WATT
• DAMPING FACTOR: >80
• S/N RATIO, A-WEIGHTED: >90 DB
• FREQUENCY RANGE: 20 HZ – 30 KHZ
• INPUT SENSITIVITY: 0,25 – 5 VOLT
• INPUT IMPEDANCE: 22 KOHM
• INPUT IMPEDANCE, HIGH LEVEL: 220 OHM
• HIGH LEVEL INPUT WITH AUTO START: YES
• REMOTE BASS LEVEL CONTROL: NO
• LOW LEVEL OUTPUT: NO
• REMOTE PHASE SHIFT CONTROL: NO
• LOW PASS FILTER: 50 – 500 HZ ( CH 1,2,3,4)
• HIGH PASS FILTER: 50 – 500 HZ (CH 1,2,3,4)
• GRAND BASS FILTER: BASS EQ @ 50 HZ: +6DB / +12 DB
• POWER CONSUMPTION (IDLE): 0,5 A
• POWER CONSUMPTION (MAX): 50 A
• REC. POWER CABLE: 16 SQ MM ( 5 AWG)
• FUSES: 2 X 25 A
• DIMENSION (W X D X H): 189 X 322 X 46 MM (7,44″ X 12,67″ X 1,81″)
• WEIGHT: 3 KG
