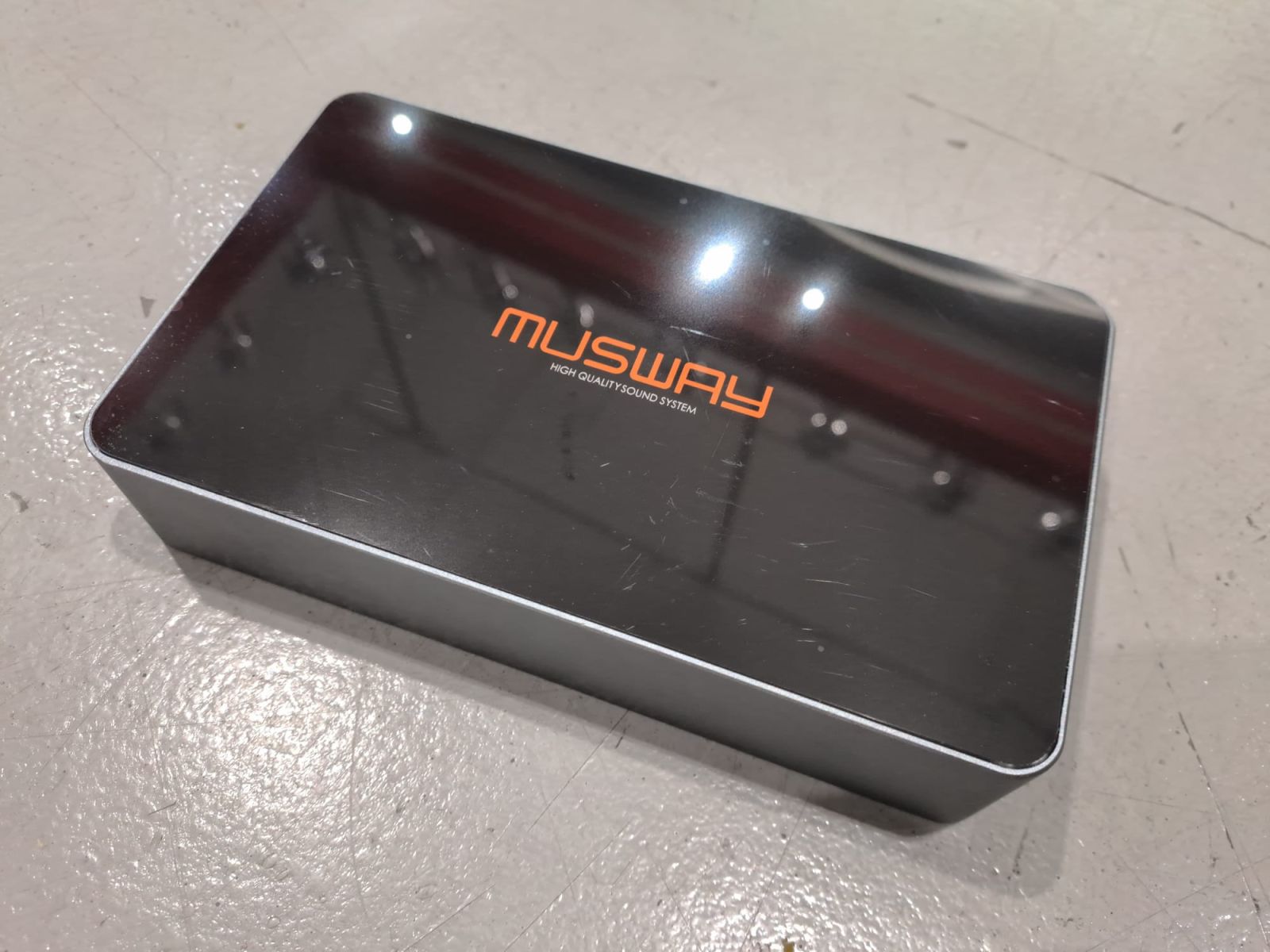

Musway D1S

4-Channel Class AB Amplifier with 6-Channel Digital Sound Processor

The new D1S is a remarkable value for the new to DSP users or budget conscious audiophiles. The D1S features Class AB Amplifier 4 x 25 watts @ 4 Ohms with 6 channels of Digital Sound Processing. The 28 bit DSP main chip supports the 10 band parametric EQ, digital crossovers and time correction. The new entry level D1s is loaded with features and is an undeniable value.

Product Specifications:

• OUTPUT POWER (RMS) at 13.8 VDC, 1% THD:
• 25 W x 4 at 4Ohms
• Frequency response 15Hz-22KHz (±0.5dB)
• Distortion - THD (1 kHz at 4 0, 90% Power) 50.022%
• S/N ratio at A weighted, 1 V, Max. Power: 95dB
• Input sensitivity: 2V RMS (High-level) Input impedance 2200 (High-level)
• Gain Margin: Gain margin: mute, -59dB ~ 0dB
• Dimension: 165(L) x 98(W) x 32(H)
• Net Weight: 450g
