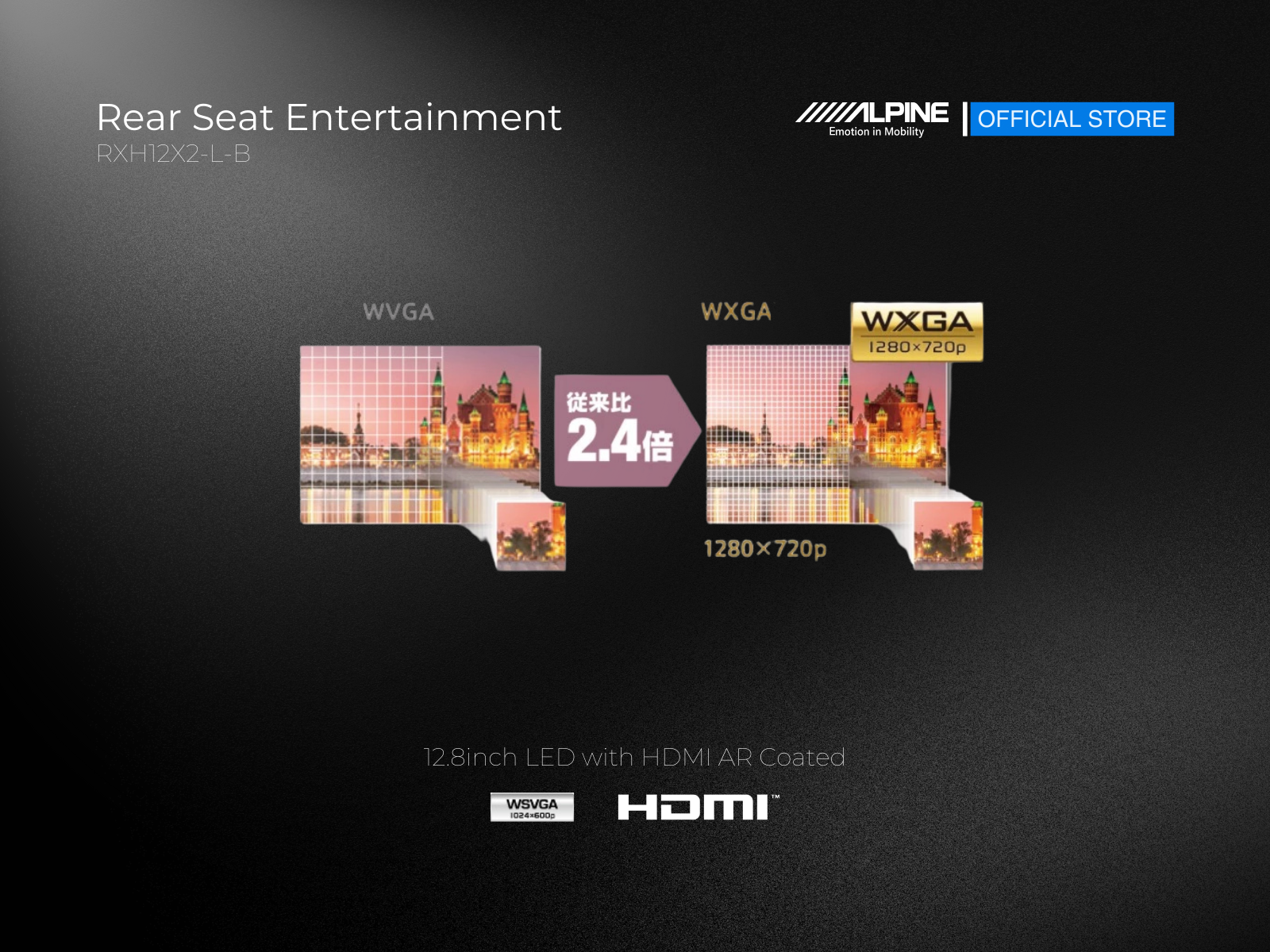

Alpine’s largest rear vision system features a spacious 12.8-inch WXGA high-definition LED LCD screen—2.4 times larger than its previous WVGA model.

Tech Spec:

• Screen size: 12.8-inch wide (159.3mm x 283.2mm x 342.3mm diagonal)
• Image quality: WXGA
• Resolution: 1,280X720
• Number of pixels: 2,764,800
• Effective pixels: Over 99.9%
• Lighting method: LED
• Power supply voltage: DC14.4V (operating range: 11 to 16V) negative ground
• Operating temperature range: -20℃ to +60℃

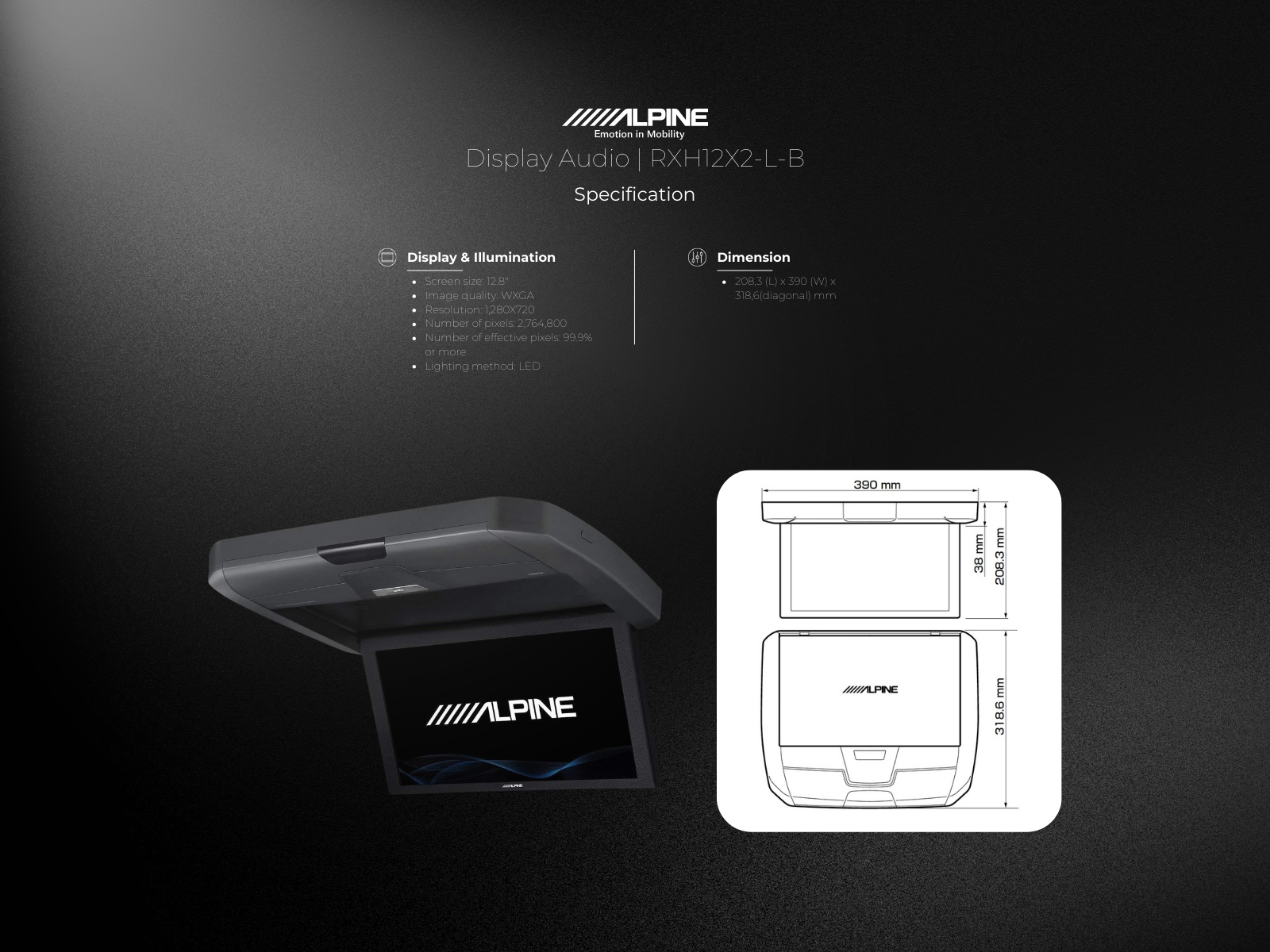

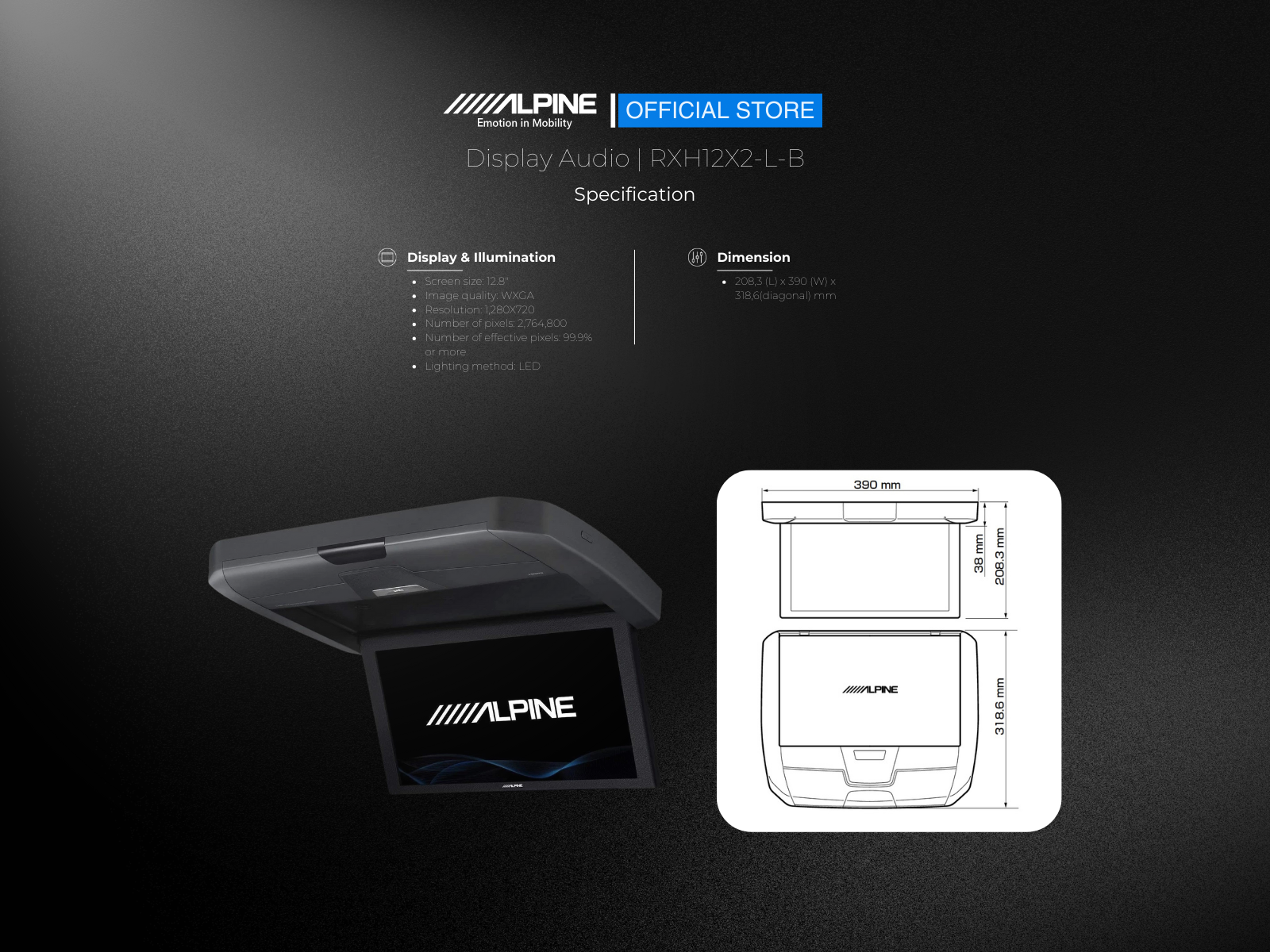

• Width: 390 mm
• Height (open): 38 mm (208.3 mm*) *When the monitor is lowered 90 degrees
• Monitor opening angle: 173.5°
• Depth: 318.6 mm
