Features

In-Car MZ72G78 (E7575NAVI II Singapore GOLDEN VERSION) MAZDA CX7 DVD Player

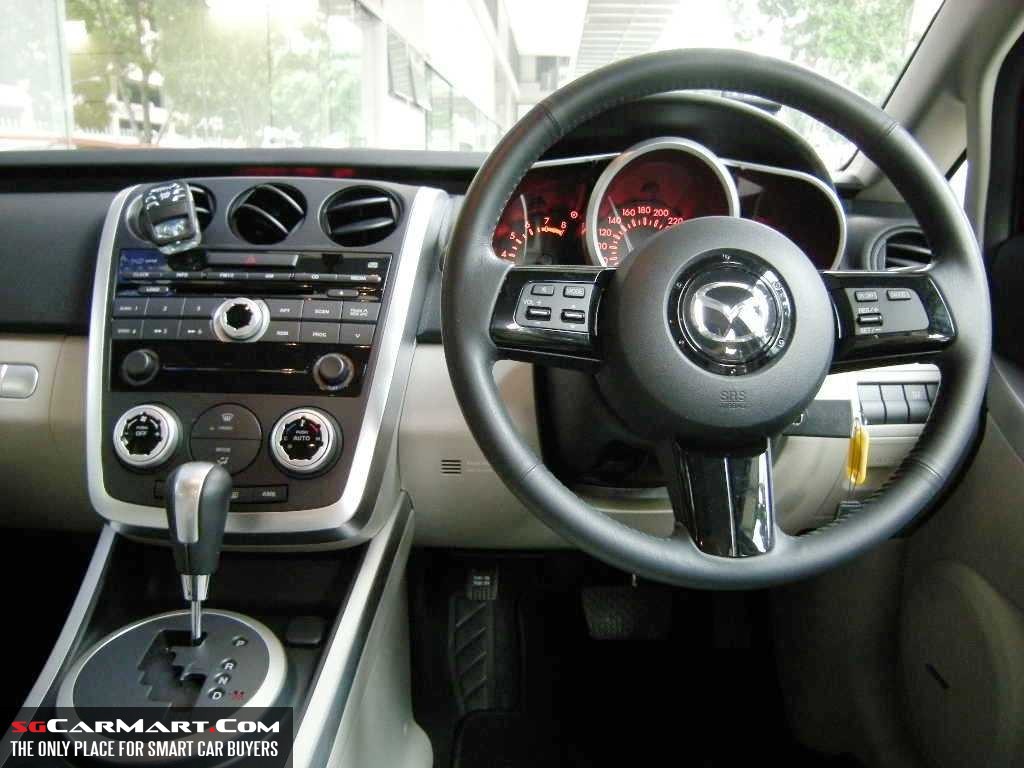

Originally Fit For MAZDA CX7 with dashboard below, 100% fit nicely. definitely no GAP.



Video Demo:
http://www.youtube.com/watch?v=KnK7G2qYYno

If the dashboard is different from the above one, take it easy, we have other choices: refer to the end of this listing.

Top Audio / Radio Quality in the World.
GPS, DVD, VCD, CD, FM/AM RADIO,
TWO Way Canbus system: Steering Wheel Control Supported, Original MFD(RED COLOR) supported, AirCon Display, FM Channel Display, and Timing Display all supported. (Unique feature)
7 inch HD LED Touch Screen (800x480).
English UI.
SG/MY map with latest UPDATES(Q1 2012) (NOTE: Unlimited free map updates)
SG postal code search, Junction view, TTS, Lane Assistant, Voice Guide, Speed trap alert, Millions of POI, with English, Mandarin, Malay, Hokkien Hakka voice GUIDE.
Bluetooth Hands Free, AirPlay(A2DP).
Support microSD card, USB thumb drive and iPod.
Extremely High Quality.
Lowest Price Guarantee in SG and MY.
Start-up Screen: "MAZDA LOGO"
Definitely Originally Perfectly fit in your ride, no gap even a little(redesigned model).
Workmanship: Experienced installation team will take 100% care of your car.

1 to 1 exchange local 1 yr wrty, can extend to 2 years
7 Day Money Back: You have 7 days to play it around, if you feel any unhappy, refund you without asking any reasons. 100% Worry free.

Installation workshop:
10 Kaki Bukit Road 2, First East Centre, #03-22, 417868

Optional items:
1. iPhone Video: YouTube, iTunes video, picture gallery slide show ($250)
2. Mobile TV: Channel 5/8/CNA, No distortion, Sharp and Steady, <160KM/H ($450)
3. RC(Reverse Camera): Night color view CCD Hi-def, wide angle, OE FIT. ($250)
4. Warranty Extension from 1 year to 2 years. ($300)

Payment:
Cash / Cheque

We also have solutions For Mazda other models' I.C.E. upgrading.

Specifications:

Display Parts:

Screen Dimension: 7 inch
Definition: 800*480
Pels: 2.65million
Type: TFT(Thin Film Transistor) Active Matrix,Light Penetration
Edge Illume: Cold Cathode Light
Colors System: Ntsc/Pal Compatible
Temperature Range: -10°C~~+50°C Centigrade
Save Temperature Range: -20°C~~+80°C Centigrade
Touch Screen: Resistance& Press Simulate(Film+ Glass)

GPS
Manner: L1,C/A Code Gps Sps Standard Localizer Service
Receive Manner: 12channel
Receive Frequency: 1575.42mhz
Sensitive: -130dbm
Test Renovate Time: Once Each Second

General Parameters
Max Consume Current: 10.0a
Pressure: Dc12v(11v~16v)
Grounding Manner: Cathode Grounding Manner
External Image Input LevEl: 1v P-P/75 Ohm
The Max Input Level Of External Sound: 1.5v/22 K-Ohm
Image Output Level: 1v P-P/75 Ohm(White 100% Output /When Displaying Dvd)

Amplifier, Audio Part
The Max Output Of Power : 45 W*4
Load Impedance: 4 Ohm
The Max Output Level /Resistance Prefix: 2.0 V/100 Ohm
Equal Loudness Curve: 6db,(10khz)
Equalizer: 100hz-14~+6db,10khz±10db

DVD Display Parts
Disk Format Supported: Dvd-Rom,Dvd-Video, Dvd-R(Video Mode) /Rw (Video Mode),Cd-Rom,Cd-Da,Cd-R/Rw
Zone Number: 6
Signal Format(Sampling Frequency): (Dvd):48/96 Khz (Cd):44.1 Khz
Signal Format(Quantum B It): (Dvd):16/20/24b It Beeline (Cd):16b It Beeline
Frequency Feature: (Dvd):8hz ~44khz(± 1db) (Cd):20hz~20khz(± 0.1/-0.3db) S/N(Dvd): 97db(1khz )(Ihf-A Network) (Cd):96db(1khz ) (Ihf-A Network)
Dynamic Bound: (Dvd):95db(1khz ) (Iec-A Curve/20khz Lpf) (Cd):94db(1khz) (Iec-A Curve/20khz Lpf)
Harmonic Distortion Rate: 0.008%(1khz )
Channel : 2(Dimensional Sound)

Fm/ Tune Parts
Receive Frequency Wave Band: (87.5mhz~108mhz)
Sensitive Degree: 9dbf(0.7μv/75ohm Single Channel S/N30db)
50db Sensitive Degree: 14dbf
S/N: 50db More than(Ihf-A Web)
Harmonic Distortion Rate: 0.3%(At 65dbf,1khz,Ster-Eo) 0.1%(At 65dbf,1khz,Mono)
Frequency Feature: 30hz~15000hz(±3db)
Dimensional Sound Distinguish: 45db More than(65dbf Input,1khz)

Am/Tune Parts
Receive Frequency Wave Band: 531khz ~1602khz (9khz ) 530khz ~1604khz (10khz )
sensitive Degree: 18μv(S/N 20db)
Perform Selection: 65 Db(Ihf-A Network)

GPS Antenna
Antenna: Microwave Transmission, And Plane Antenna/ Right-Hand Circularly Polarized Wave
Antenna Length : 5.0m

Product Size
Size: 178(W)*100(H)*165 (D)Mm
Gps Antenna Magnetic Base: 39(W)*15.5(H)*48.5 (D)Mm

Total Weight
Weight: 2.5kg
